E-QSFP56-4SFP56-xM

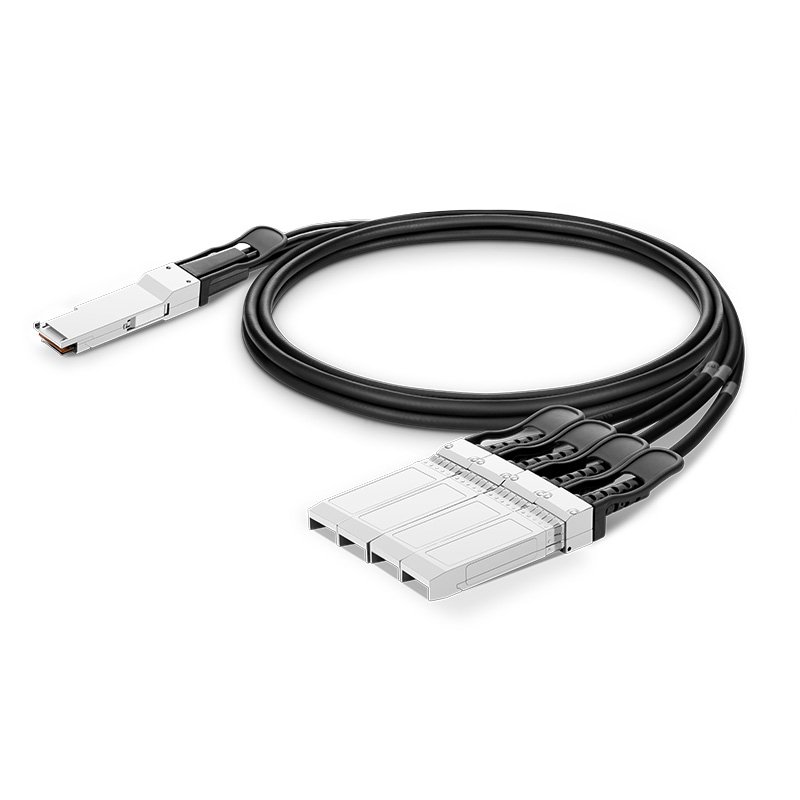

200G QSFP56 to 4 x 50G SFP56 Passive Direct Attach Copper Breakout Cable
P/N: E-QSFP56-4SFP56-xM
🔁Compatible Alternatives
Product Details

200G QSFP-DD to 2 x 100G QSFP28 Passive Direct Attach Copper Breakout Cable

The QSFP56 to 4x 50G SFP56 Direct Attach Cable operates over passive copper, which requires no additional power to ensure quality connectivity. This breakout cable is compliant with IEEE 802.3bj, SFF-8679 and SFF-8636 standards. It provides a connection of a 200G QSFP56 port on one end and to four 50G SFP56 ports on the other end and is suitable for cost-effective close-range interconnections within the equipment room of telecom operators or data centres, etc.

Specifications
Part Number
E-QSFP56-4SFP56-xM
Data Rate
200G
Product Type
DAC
Form Factor
QSFP56 to 4SFP56
Wire
26-30AWG
Cable Length
0.5-7m
Jacket Material
PVC
Cable Type
Passive Twinax
Media
Copper
Commercial Temperature Range
0 to 70°C
Quality Assurance

Excellent quality is the foundation of FiberMall’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting

Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

  • Temperature Impact

    High and low-temperature cycle, aging test to ensure good temperature characteristics MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module

  • Mechanical Impact

    Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module

  • EMI Testing

    Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module

  • MTBF Testing

    MTBF(Mean Time Between Failures)testing ensures high stability
