Product Details

Our optical modules offer 100% third-party compatibility, ensuring seamless integration with various systems and devices.

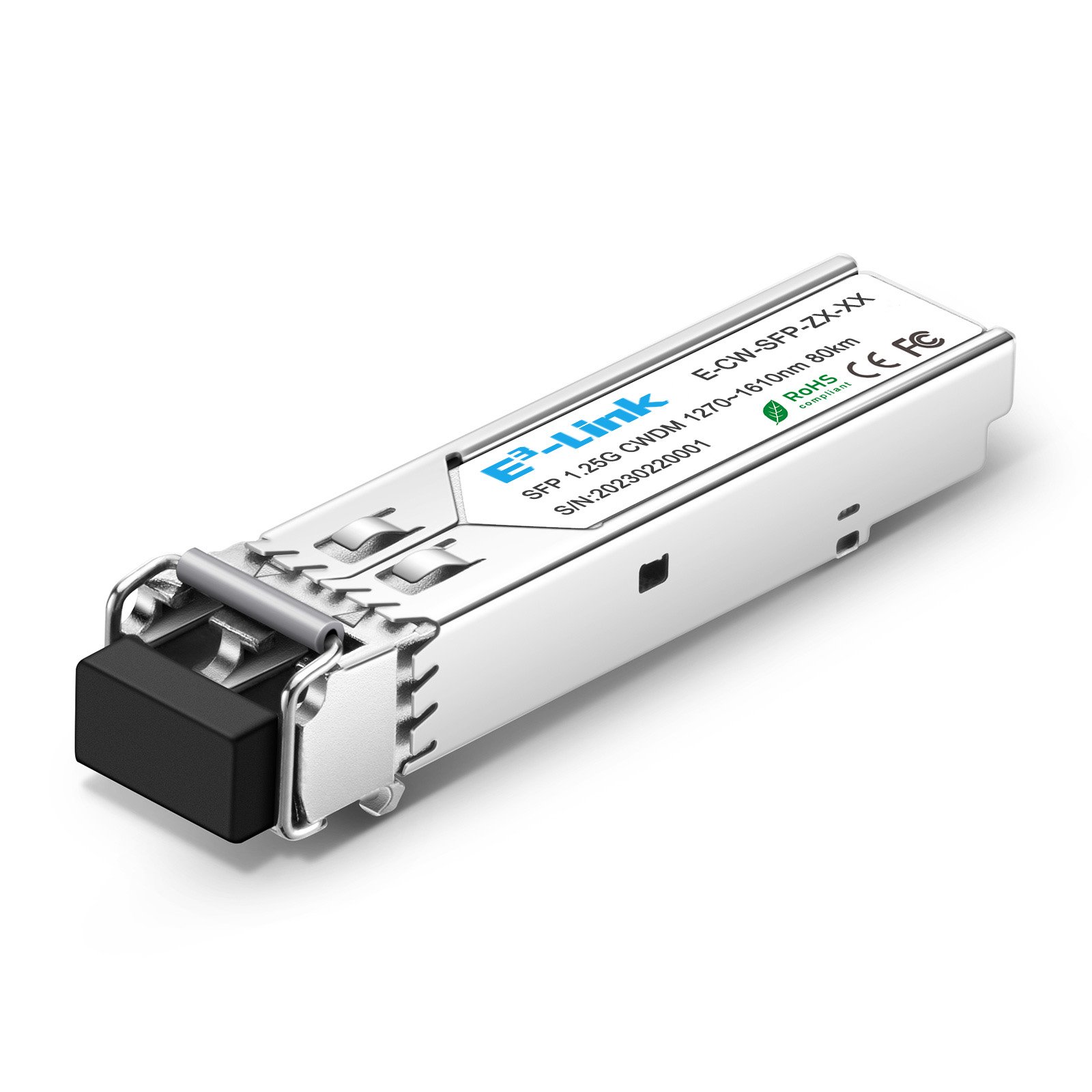

SFP 1000BASE-CWDM 1270nm ~ 1610nm 80km DOM Duplex LC/UPC SMF Optical Transceiver Module
P/N: E-CW-SFP-ZX-XX
šŸ”Compatible Alternatives
Product Details

1000BASE-CWDM SFP Transceiver Module (SMF, 1270nm ~ 1610nm, 80km, LC, DOM)
The Generic compatible SFP transceiver supports up to 80km link lengths over single-mode fiber (SMF) via an LC duplex connector. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc.
The hot-swappable 1G SFP transceivers feature low power consumption and CWDM technology, which saves fiber resources by combining optical signals of different wavelengths through an external WDM and transmitting them over a single fiber. Ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Specifications
Part Number
E-CW-SFP-ZX-XX
Data Rate
1.25G
Form Factor
SFP
Distance
80KM
Wavelength
1270nm ~ 1610nm
Media
SMF
Connector
Duplex LC
Source
DFB+APD
TX Power
-2 ~3dBm
Receiver Sensitivity
-24dBm
DDM/DOM
Supported
Temperature Range
0-70ā„ƒ
Quality Assurance

Excellent quality is the foundation of FiberMall’s survival and development. Our operation team are experts with many years’ experienceĀ in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting

Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

  • Temperature Impact

    High and low-temperature cycle, aging test to ensure good temperature characteristics MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module

  • Mechanical Impact

    Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module

  • EMI Testing

    Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module

  • MTBF Testing

    MTBF(Mean Time Between Failures)testing ensures high stability
