Temperature Impact
High and low-temperature cycle, aging test to ensure good temperature characteristics

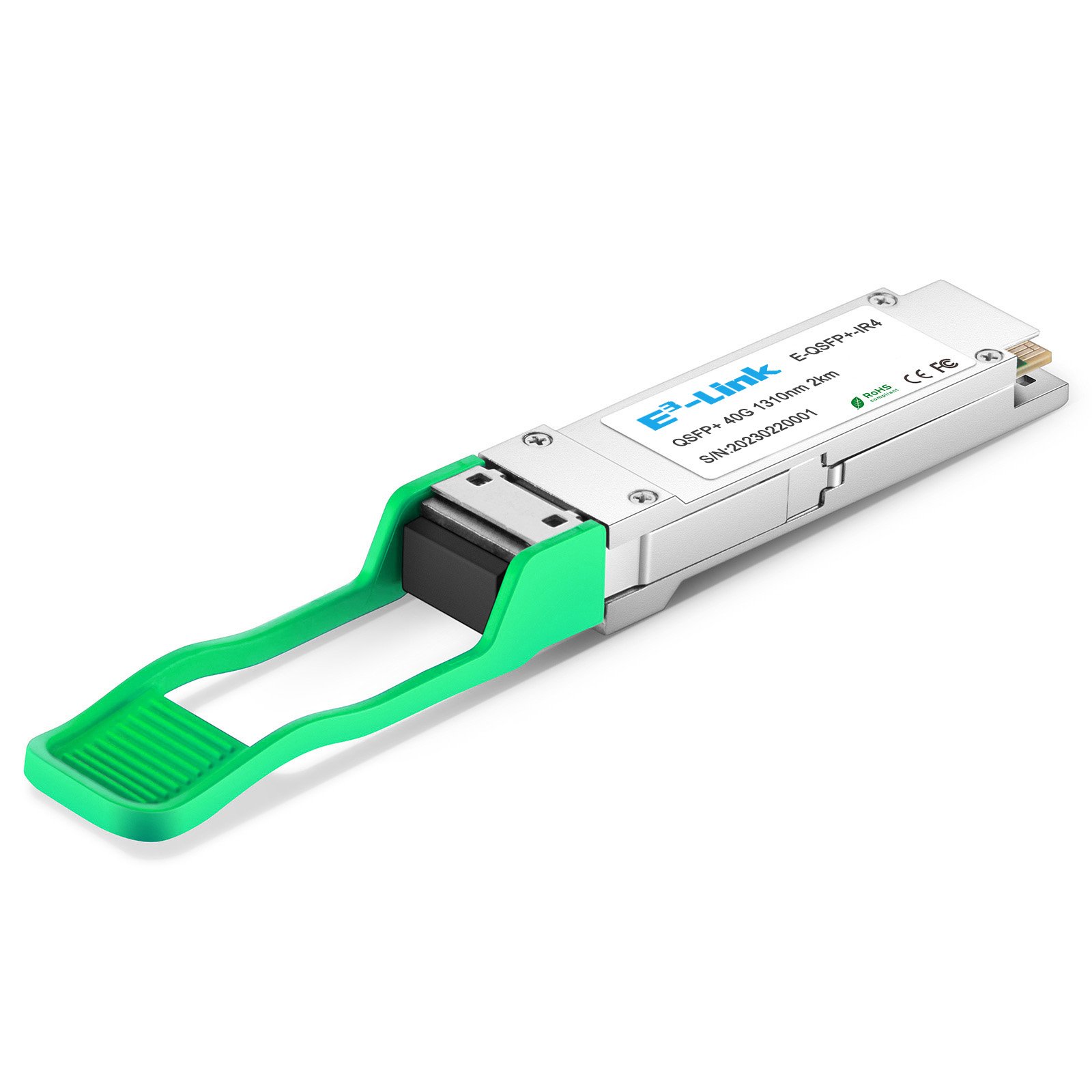

MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module
Product Details
Our optical modules offer 100% third-party compatibility, ensuring seamless integration with various systems and devices.
QSFP+, 40GBASE-IR4, 4 x 10.3 Gbps, CWDM 1270-1330nm 2km
P/N: E-QSFP+-IR4
🔁Compatible Alternatives
Product Details
QSFP+, 40GBASE-IR4, 4 x 10.3 Gbps, CWDM 1270-1330nm 2km
APPLICATIONS
• 40G Ethernet
• Data Center and LAN
• InfiniBand
FEATURES
• 4 CWDM lanes Mux/Demux design (1271, 1291, 1311 and 1331 nm)
• Up to 11.1Gbps Data rate per wavelength
• Up to 2km transmission on SMF
• Electrically hot-pluggable
• Digital Diagnostics Monitoring Interface
• Compliant with QSFP+ MSA with LC connector
• Case operating temperature range:0°C to 70°C
• Power dissipation < 3.5 W
Specifications
Part Number
E-QSFP+-IR4
Data Rate
40G
Form Factor
QSFP+
Distance
2KM
Wavelength
CWDM
Media
SMF
Connector
Duplex LC
Source
DFB/PIN
TX Power
-7~2.3dBm
Receiver Sensitivity
-11.5dBm
DDM/DOM
Supported
Temperature Range
0-70℃
Quality Assurance
Excellent quality is the foundation of FiberMall’s survival and development. Our operation team are experts with many years’ experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
