Temperature Impact
High and low-temperature cycle, aging test to ensure good temperature characteristics
MikroTik Q+85MP01D 40G QSFP+ SR4 Optical Module
Product Details
Our optical modules offer 100% third-party compatibility, ensuring seamless integration with various systems and devices.
100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
P/N: E-QSFP28-LR4
šCompatible Alternatives
Product Details

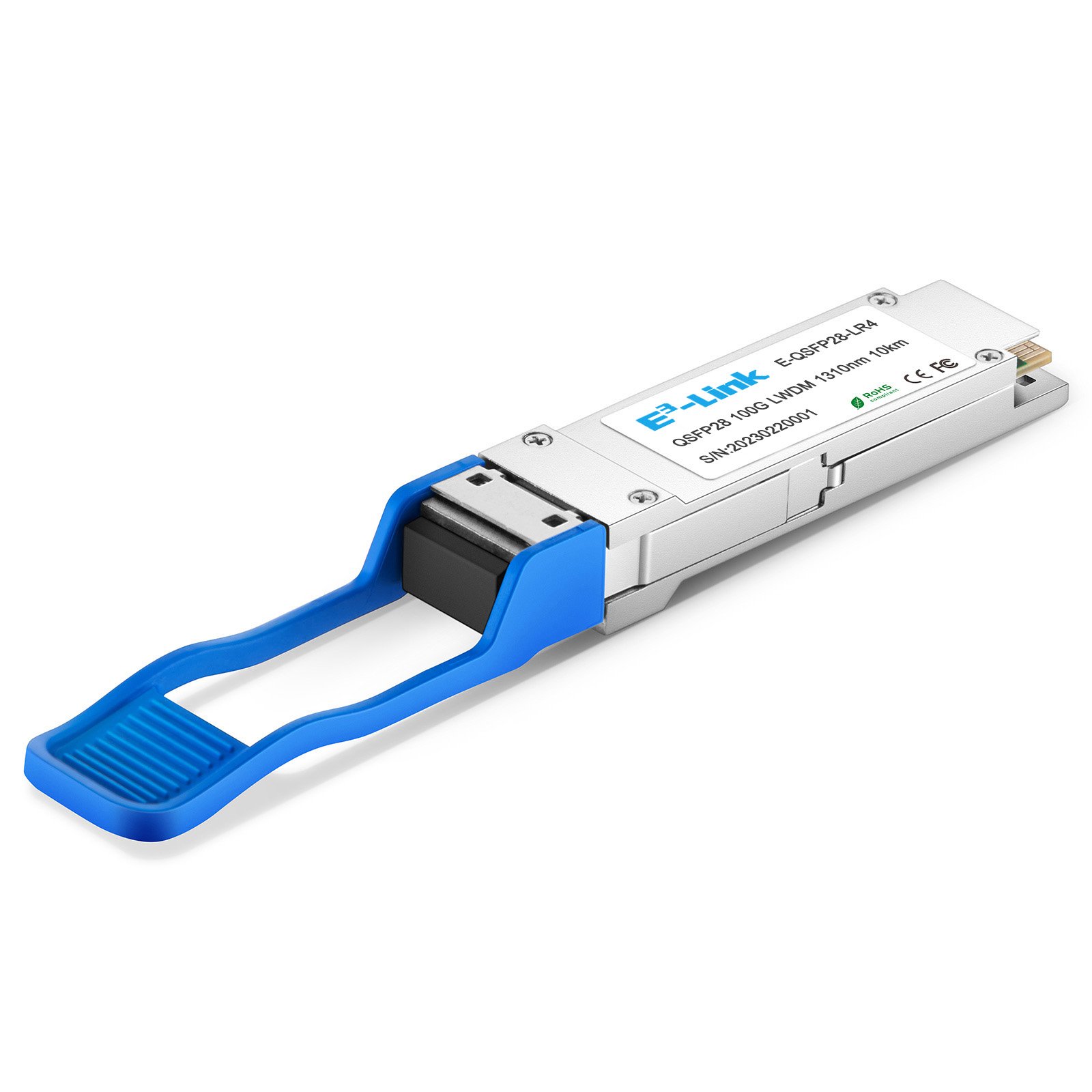

100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. This transceiver is compliant with IEEE 802.3 100GBASE-LR4, SFF-8665 and SFF-8636 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.
Specifications
Part Number
E-QSFP28-LR4
Data Rate
100G
Form Factor
QSFP28
Distance
10KM
Wavelength
1295, 1300, 1304, 1309nm
Media
SMF
Connector
Duplex LC
Source
CWDM DFB/PIN
TX Power
-4.3~4.5dBm
Receiver Sensitivity
-10.6dBm
DDM/DOM
Supported
Temperature Range
0-70ā
Quality Assurance
Excellent quality is the foundation of FiberMall’s survival and development. Our operation team are experts with many years’ experienceĀ in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
Note: Installing the third-party optical module will not affect the warranty service of your network equipment, and it is also stated in the equipment user manual that the warranty service of the product will not be affected by the third-party optical module.
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably
Mechanical Impact
Mechanical vibration testing to ensure the stability of products MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleEMI Testing
Excellent design and rigorous testing ensure good EMI performance MikroTik Q+85MP01D 40G QSFP+ SR4 Optical ModuleMTBF Testing
MTBF(Mean Time Between Failures)testing ensures high stability
