100GBASE-ZR4 QSFP28 1310nm 80km DOM Duplex LC/UPC SMF Optical Transceiver Module
P/N: E-QSFP28-ZR4
šCompatible Alternatives
Product Details

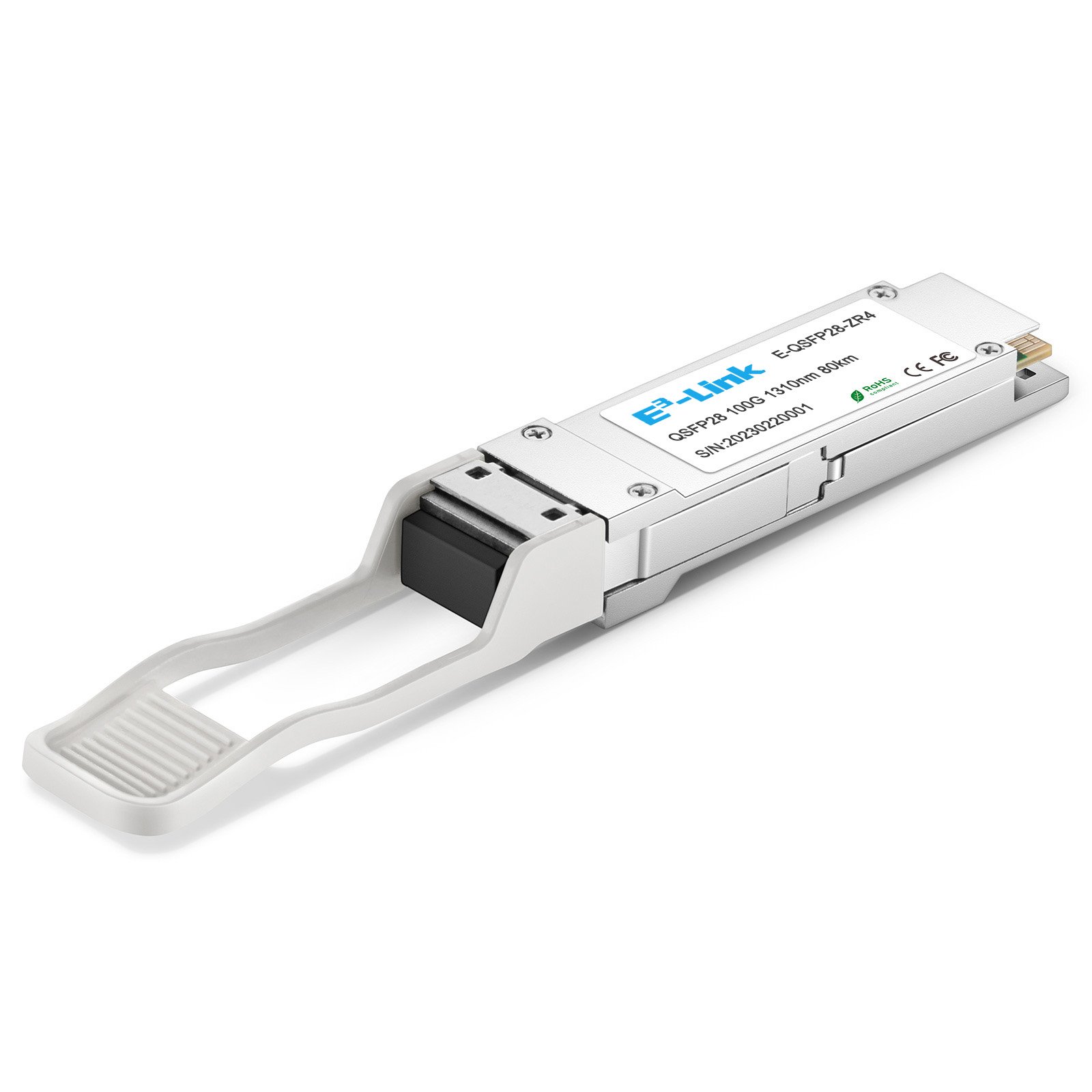

100GBASE-ZR4 QSFP28 1310nm 80km DOM Duplex LC/UPC SMF Optical Transceiver Module
The QSFP28 optical transceiver module is designed for use in 100GBASE Ethernet, providing throughput up to 80 km over single-mode fiber (SMF) using a wavelength of 1310 nm via duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. Featuring a BOX+FPC+PCBA separate design, it offers great reliability, airtightness, and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and IEEE 802.3bm CAUI-4 standards. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy-to-install, hot-swappable transceiver is suitable for various applications, such as 100G Ethernet, telecom, and data centers.
Specifications
Part Number
E-QSFP28-ZR4
Data Rate
100G
Form Factor
QSFP28
Distance
80KM
Wavelength
LWDM 1294-1310nm
Media
SMF
Connector
Duplex LC
Source
EML/APD
TX Power
2~6.5dBm
Receiver Sensitivity
-28dBm
DDM/DOM
Supported
Temperature Range
0-70ā
